CNC Universal Cylindrical Grinder

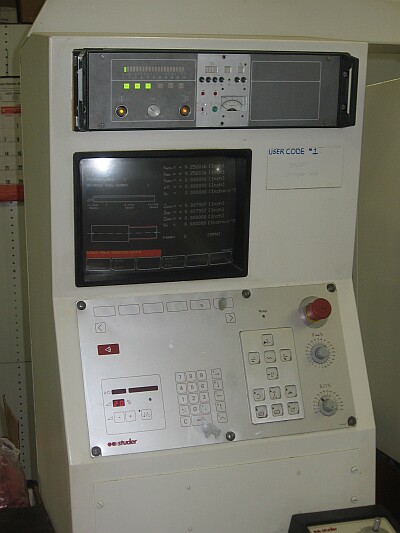

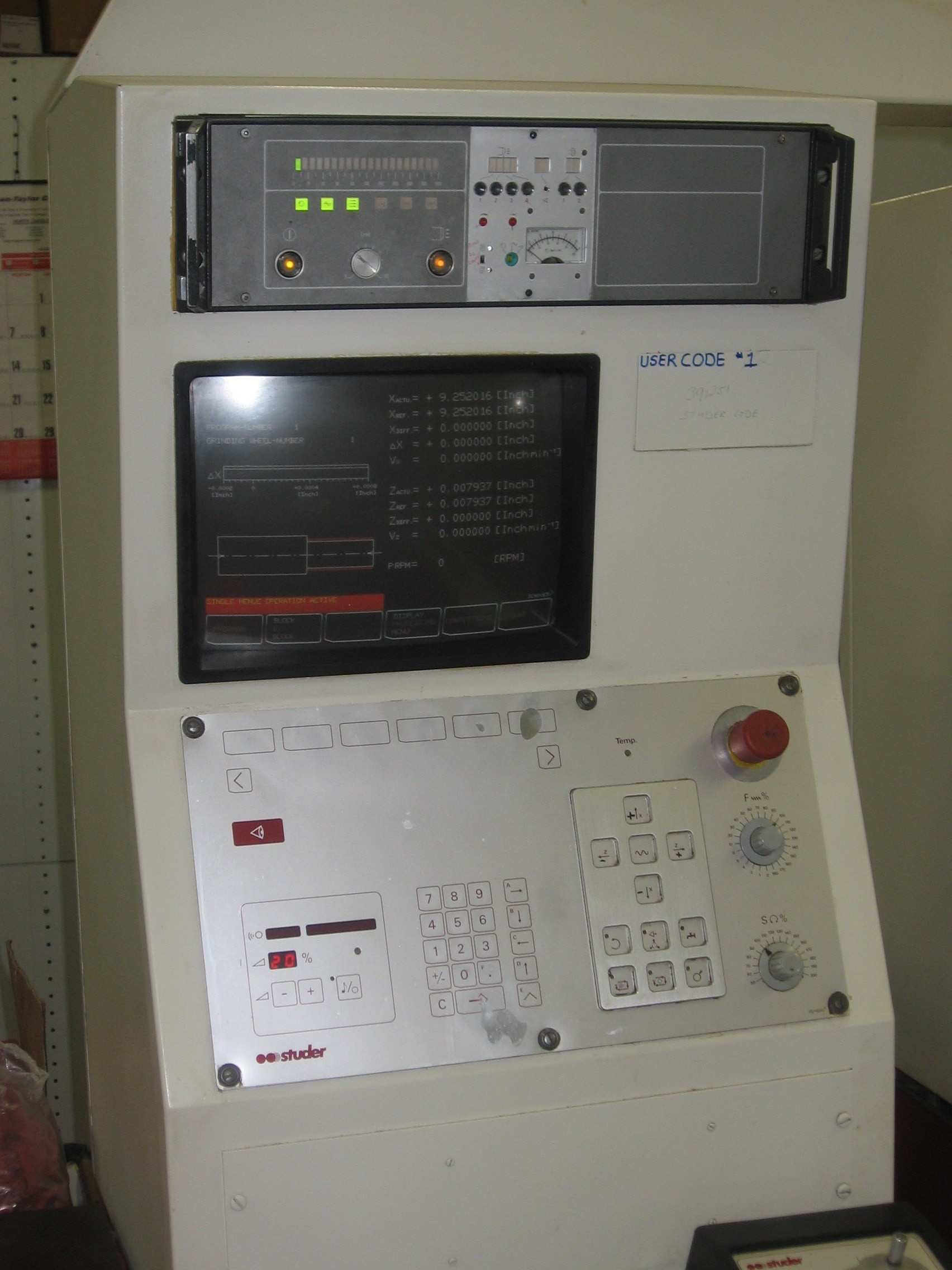

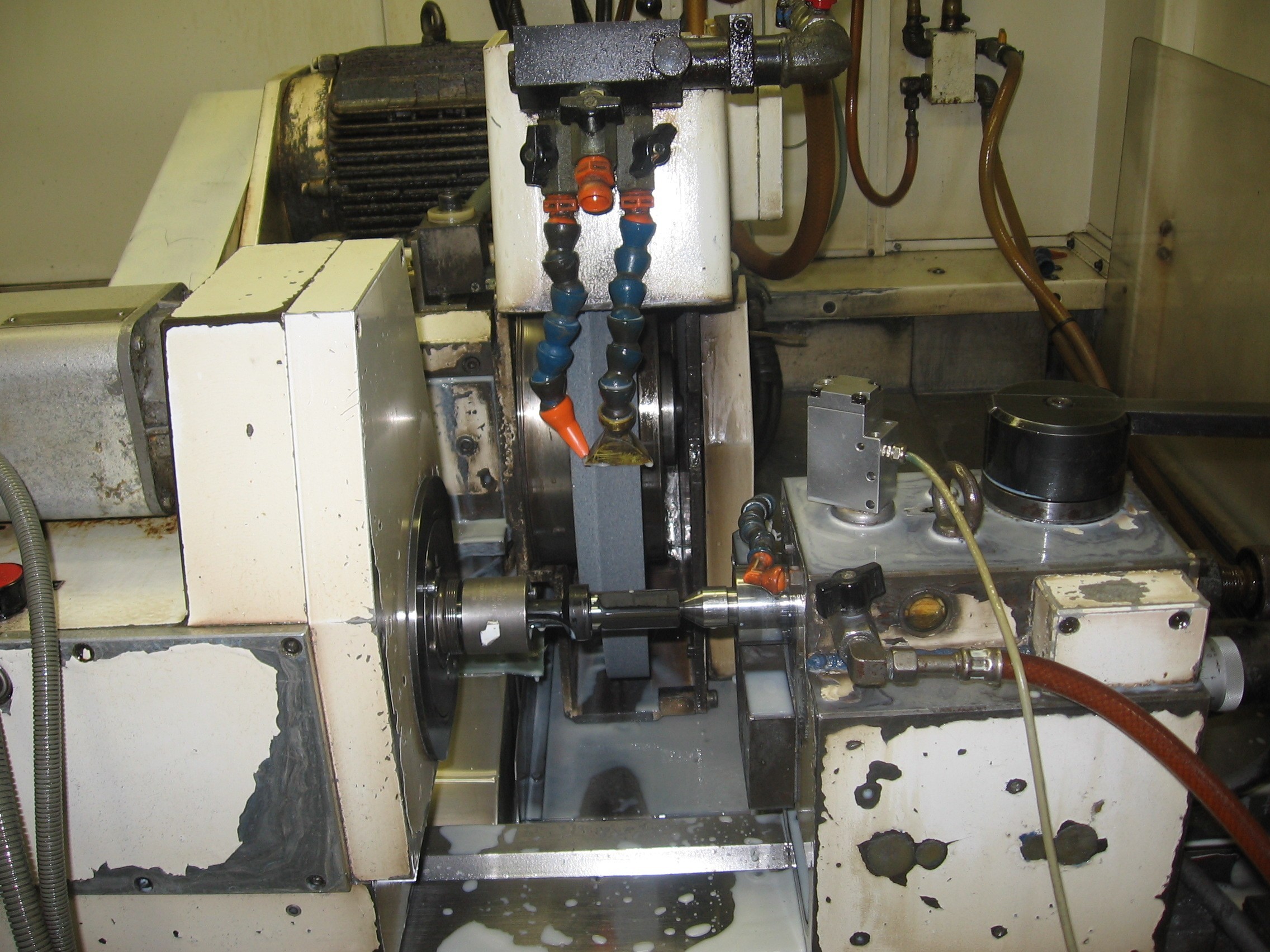

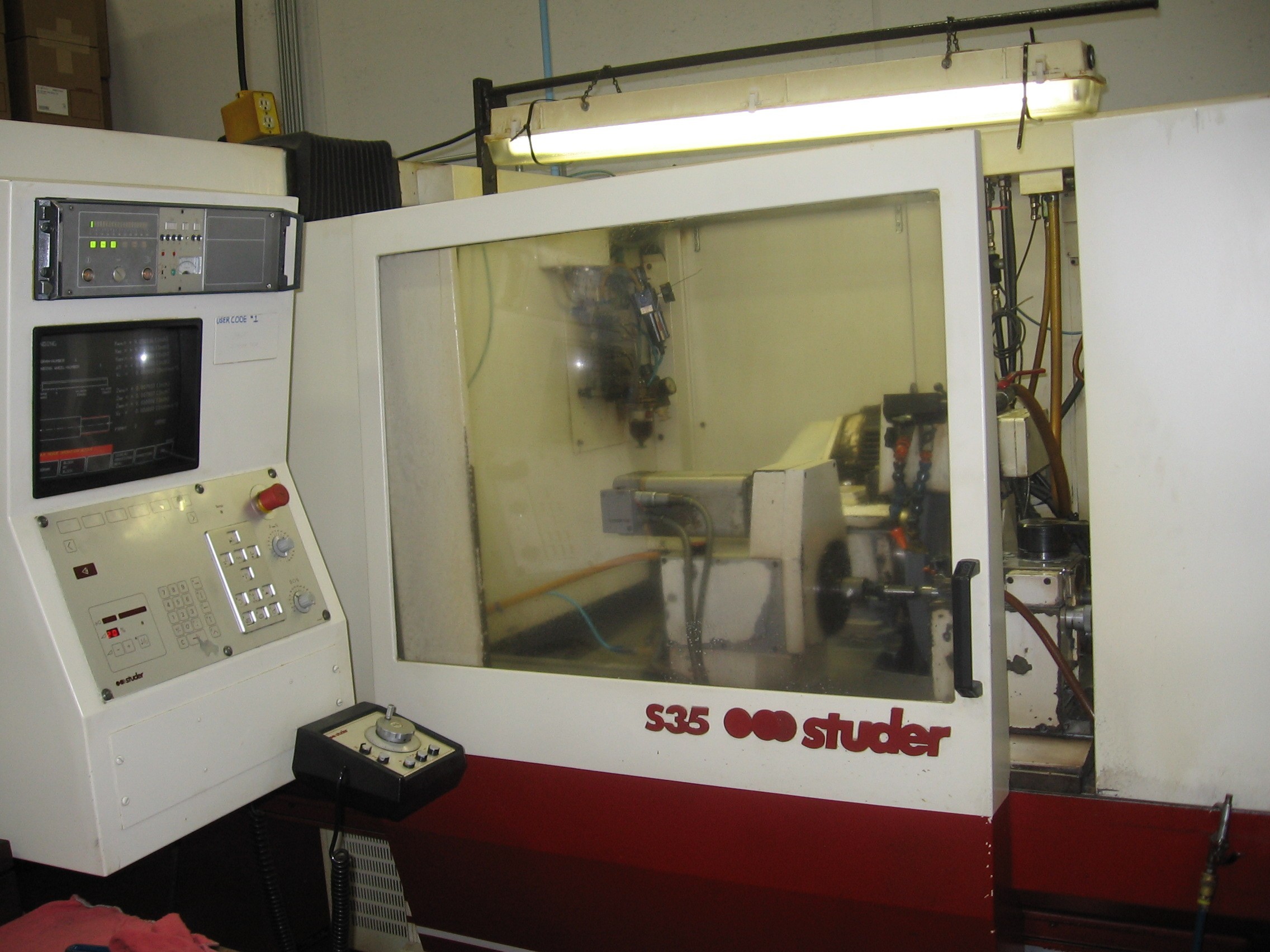

(1) S35 Studer CNC Universal Cylindrical Grinder
S/N 20051
New 1988
Computer Updated 2006
Center Height 6-7/8"
Center Distance 40"
Grinding Length Max. 21-1/4"
Grinding Diameter Max. 11-13/16"
Z Axis Travel 25-19/32"
X Axis Travel 10"
Infeed Speeds 0.0003 to 197 IPM
Grinding Wheel 20" D X 3-1/4" Wide X 8" Bore
Grinding Wheel Speed 1670 RPM
Swivel Range (+/-) 8.5 Degrees
Workhead Speed Range 15 to 750 RPM
Taper Morse 5
Max. Workpiece Between Centers 287 lbs
Live Grinding Load 74 ft-lbs
Tailstock Barrel Travel 1-13/16"
Weight 3500 kgs
Dittel Wheel Auto Balance Unit
2 Crates of Spare Parts
FOB Our Warehouse
